Caseeda NG14A low-light night vision monocular designed for ultra-low-light observation
CaseeDa NG14A Series See More Than Traditional GEN2+ RV-NG14A is a compact digital low-light night vision...
Vendor:
CaseeDa
Availability:
Out Of Stock
- $9,999.00
- $9,999.00
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
$9,999.00
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $800
Estimated to be delivered in 7~10 days.
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Description
x
CaseeDa NG14A Series
See More Than Traditional GEN2+
RV-NG14A is a compact digital low-light night vision monocular designed for ultra-low-light observation, smooth low-latency viewing, PVS-14 accessory compatibility, and modern WiFi app connectivity
0.0001 LUXUltra-low-light imaging
800×600Detector resolution
<300gLightweight body
1-inch SensorHigh-sensitivity solid-state low-light detector with AI ISP noise reduction.
18μmLarge pixel pitch
50/100HzSmooth low-latency viewing
128GBBuilt-in storage
IP67Dustproof & waterproof
4× / 8×Digital zoom capability
18650Replaceable battery
Ultra-Low-Light Performance
Clear observation at 0.0001 LUX without relying on visible fill light.
NG14A combines a high-sensitivity 1-inch low-light device with self-developed AI ISP noise reduction, helping deliver usable images in extremely weak ambient light.
- Works in moonlight, starlight and difficult low-light scenes
- AI ISP algorithm helps reduce noise and improve scene clarity
- Anti-bright-light advantage for day and night operation
0.0001 LUX AI ISP No visible fill light required
Why NG14A
A modern digital night vision platform for real field use.
Designed for outdoor night vision, security response, rescue, forest monitoring, camping exploration and professional observation tasks.
High Sensitivity Imaging
1-inch detector, 18μm large pixel size and 800×600 resolution help produce a clearer low-light image.
Fast, Smooth Viewing
50Hz / 100Hz frame rate delivers a more fluid viewing experience with lower perceived delay.
Lightweight PEEK Body
Military-grade high-strength PEEK housing keeps the device lightweight, strong and field-ready.
Day & Night Versatility
Anti-bright-light design supports daytime and nighttime operation across changing field conditions.
Accessory Ecosystem
Compatible with PVS-14 style night vision accessories for helmet mounting, adapters and common setups.
Outdoor Reliability
IP67 protection, 1/4-20 thread compatibility and replaceable 18650 battery support serious outdoor use.
Real Video Comparison
NG14A vs Traditional GEN2+
Position NG14A as a flexible digital low-light solution with stronger modern functions, lower latency viewing, app connectivity and broad accessory compatibility.
| Feature | NG14A | GEN2+ |
|---|---|---|
| Extreme Low-Light Imaging | ✓ | ✓ |
| Daytime Operation | ✓ | × |
| Bright Light Resistance | ✓ | Limited |
| Video Recording | ✓ | External Device Required |
| WiFi Streaming | ✓ | × |
| Mobile APP Control | ✓ | × |
| Image Enhancement | AI ISP | Fixed |
| Tube Burn Risk | None | Possible |
| Maintenance Cost | Low | High |
| Ecosystem Compatibility | PVS-14 Compatible | PVS-14 |
4× Digital Zoom
See farther and frame tighter when details matter.
Digital zoom helps users move from wide-area scanning to tighter target observation without changing accessories or field setup.
- 1× for fast area scanning
- 2× / 3× for better target framing
- 1× / 2× / 3× / 4× digital zoom for step-by-step target framing

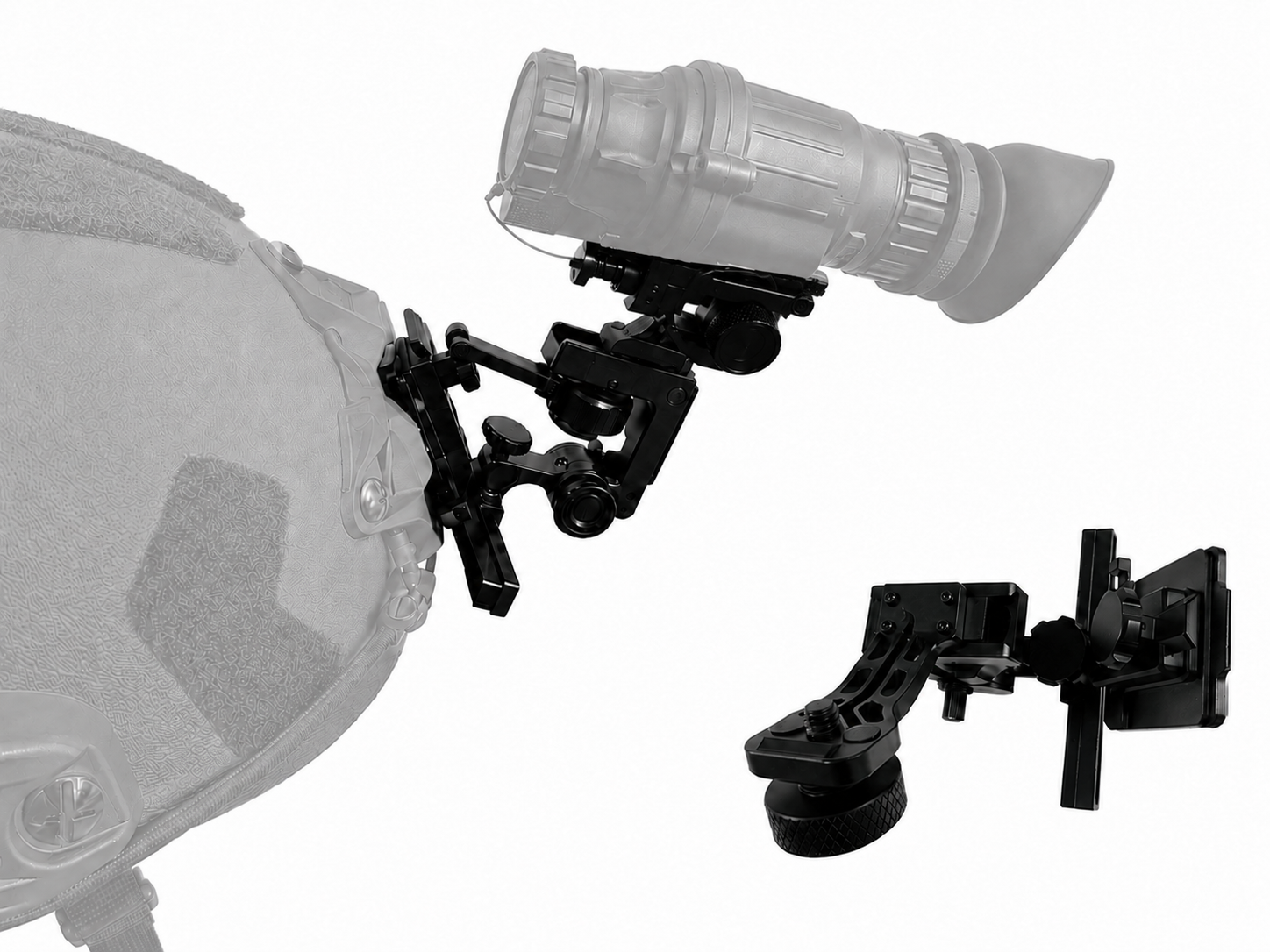

PVS-14 Compatible
Drop into familiar mounting systems and field accessories.
NG14A is built for broad compatibility with PVS-14 style night vision accessories, supporting helmet mount setups, adapters and common field configurations.
- Compatible with common PVS-14 accessories
- 1/4-20 thread for flexible mounting
- Supports optional dovetail / flip-up style brackets
WiFi + Mobile APP
Record, view and share night scenes from your mobile device.
Built-in WiFi and mobile app support make NG14A easier to use for field testing, content capture, team observation and after-action review.
- Live view from mobile device
- Video and photo capture support
- 128GB storage for field footage
IP67 Protection
Built for dust, rain and demanding outdoor conditions.
NG14A is designed with IP67-rated protection to support field observation in wet, dusty and unpredictable environments.
- Dustproof structure for outdoor trails and field work
- Waterproof protection for rain, splashes and humid conditions
- Reliable body design for rescue, patrol and night exploration
18650 Battery
Replaceable power for up to 6 hours of field use.
A single rechargeable 18650 battery keeps NG14A practical for long observation sessions, outdoor search, camping and patrol tasks.
- 1× replaceable 18650 rechargeable lithium battery
- Up to 6 hours of working time
- Easy battery replacement for extended field operation
Technical Data
RV-NG14A Specifications
Core parameters organized from the datasheet for buyer review and dealer communication.
| Item | Specification |
|---|---|
| Product Type | Digital Low-Light Night Vision Monocular |
| Detector Size | 1 inch |
| Spectral Response | 400nm – 1100nm |
| Detector Resolution | 800×600 |
| Pixel Size | 18μm |
| Minimum Illumination Without Fill Light | 0.0001 Lx |
| Display | 0.39” OLED, 1280×1024 |
| Frame Rate | 50Hz / 100Hz |
| Objective Lens | 22mm, F1.04 |
| Field of View | D 44° × H 38° × V 22° |
| Exit Pupil / Eye Relief | 8mm / 35mm |
| Digital Magnification | 8× |
| Minimum Focus Distance | 1.5m |
| Diopter | -6D to +4D |
| Recording / Storage | Supported / 128GB |
| Interface | USB OTG, 6-pin aviation connector |
| IR Fill Light | 850nm, 10m fill light |
| Startup Time | <3s |
| Battery | 1× 18650 / 3500mAh rechargeable lithium battery |
| Working Time | ≤6 hours |
| Mechanical Interface | 1/4-20 thread, optional dovetail / flip mount compatible |
| Protection Rating | IP67 |
| Weight | <300g, including battery, excluding bracket |
| Working Temperature | -20℃ to 55℃, expandable to -40℃ to 60℃ |
| Human Observation Distance | 935m detection / 468m recognition / 234m identification |
| Vehicle Observation Distance | 1265m detection / 633m recognition / 316m identification |
What's in the Box
Ready for field deployment.
Use the package-content visual from your zip to show buyers the complete kit clearly. Edit the accessory names below if your final package differs.
- NG14A night vision monocular
- 18650 rechargeable battery
- Charging / data cable
- Mounting and daily-use accessories
FAQ
Frequently Asked Questions
Can NG14A work without an infrared illuminator?
Yes. NG14A is designed for ultra-low-light observation and can image in 0.0001 Lx ambient light without relying on visible fill light. It also includes 850nm IR fill light for short-range supplemental use.
Is it compatible with PVS-14 accessories?
Yes. NG14A is designed to be compatible with PVS-14 style accessory ecosystems, including common mounts and field setups.
What makes it different from traditional GEN2+ night vision?
NG14A is a digital low-light device with AI ISP processing, high-frame-rate display, WiFi app support, recording, digital zoom and built-in storage.
What applications is it suitable for?
Outdoor night vision, law enforcement support, safety rescue, forest monitoring, camping exploration and general low-light observation.
